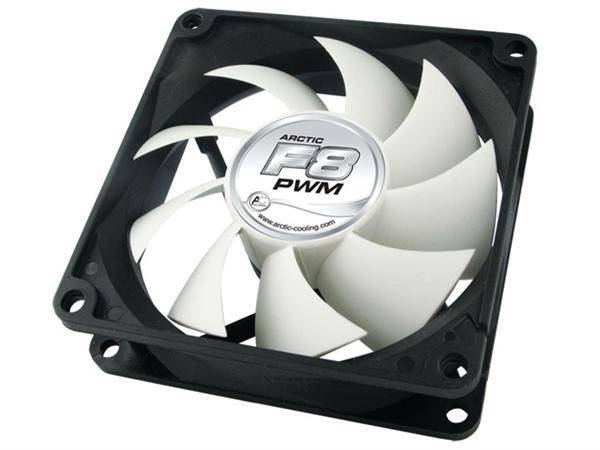

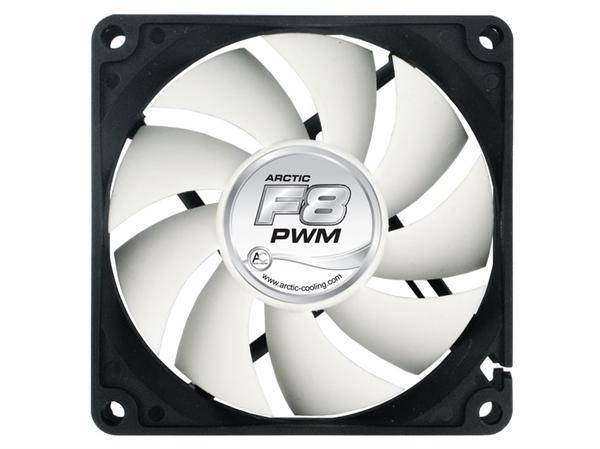

Arctic Cooling Arctic F8 PWM

God og billig 80mm PWM blæser fra Arctic Cooling med en meget lang levetid.

Dette er en opdateret version af den gamle AF8025 blæser, bla mere airflow og mindre støj ved samme RPM, den største forskel er 9 blade på blæseren istedet for 7.

Arctic Coolings blæsere bruger Glidelejer (FDB), som giver dem en levetid på ca. 400.000 timer, og Arctic Cooling yder hele 6 års garanti på dem!

Producenten skriver:
The ARCTIC F PWM fans outerperform other 80mm/92mm/120mm fans in the market. The patented PWM Sharing Technology (PST) regulates the speed up to 5 fans via BIOS. With efficient central cooling, the ARCTIC F PWM fans offer excellent cooling and noise control performance for the system.


• Patented PWM Sharing Technology (PST)
• Extremely quiet
• High air flow and static pressure
• Low noise impeller
• Fluid dynamic bearing extends service life


How does PST lower the temperature of the entire case?

Featuring PWM function, the ARCTIC F PWM fans run at the most necessary speed to deliver maximum cooling capacity at the lowest noise level possible. On top of that, thanks to the patented innovative PWM Sharing Technology (PST), up to 5 fans (including CPU fans) can be connected to the ARCTIC F PWM fan to share the PWM signal. The speed of all the fans in this PST system is now centrally controlled by a single PWM signal via BIOS.

As a result, when the system load increases, fan speed of all fans connected in the PST system will be increased in order to lower the case temperature. Likewise, when the load is low, these fans will operate at a relatively low speed for sufficient cooling.


In conclusion, the advantages of having PST are:
(1) Control the speed of different fans with only one PWM signal from the mainboard
(2) Case ventilation can be achieved in a quiet and efficient way. More fans run slower at low load, which deliver sufficient cooling at a much quieter operation than before
(3) Better energy saving as fans are not always at full load


Specifikationer:
Blæserstørrelse: 80x80x25mm
Omdrejninger: 700-2000 RPM +/- 10%
Airflow: 28 CFM / 47.6 m3/h +/- 10%
Lydniveau: 17,0 dB(A), 0.3 Sone
Volt (V): 12
Tilslutning: 4 pin PWM-signal
Forventet levetid: ca. 400.000 timer (Standard er 50.000 timer)
Garanti: 6 års (!!) producentgaranti

Kompatibilitet:
80mm blæser monteringshuller

Produktet indeholder:
1 stk. blæser
Blæserskruer

Monteringsvejledning: ArcticCooling.com

Varenummer:
08AC011
