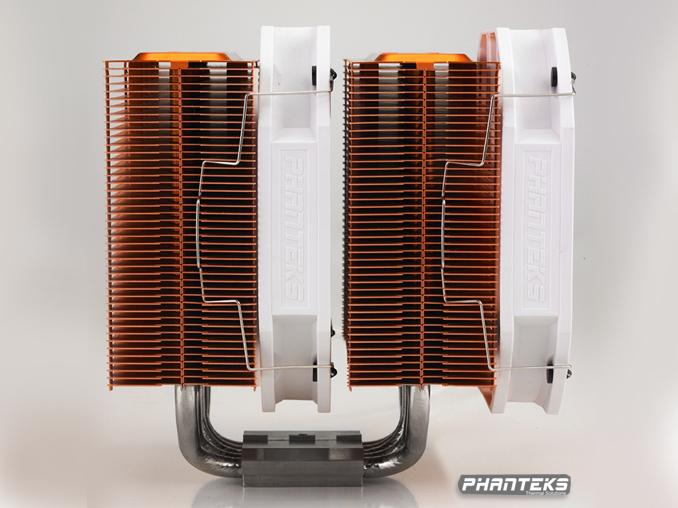

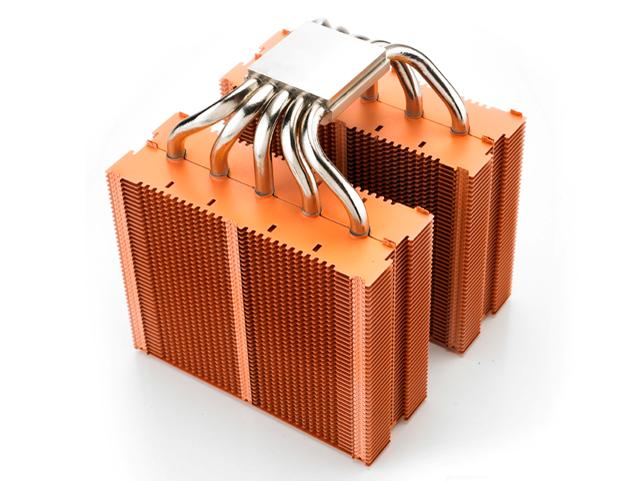

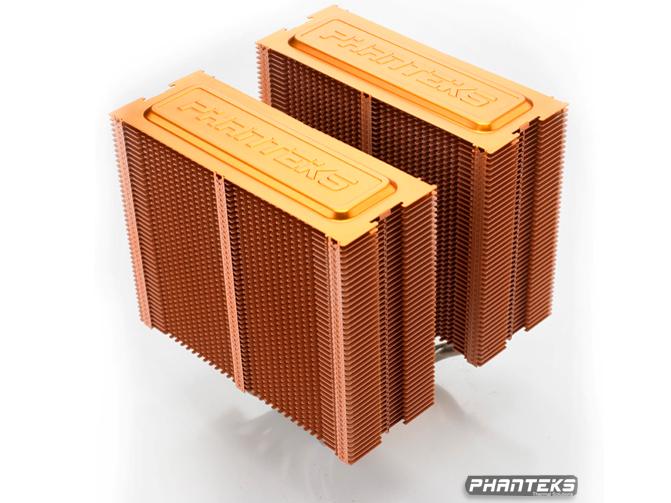

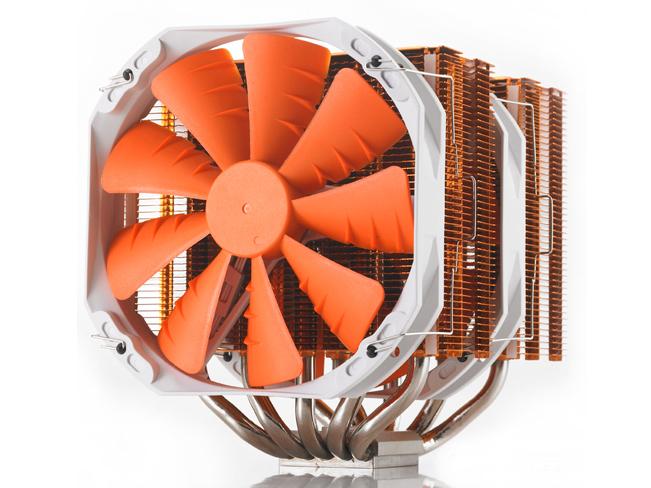

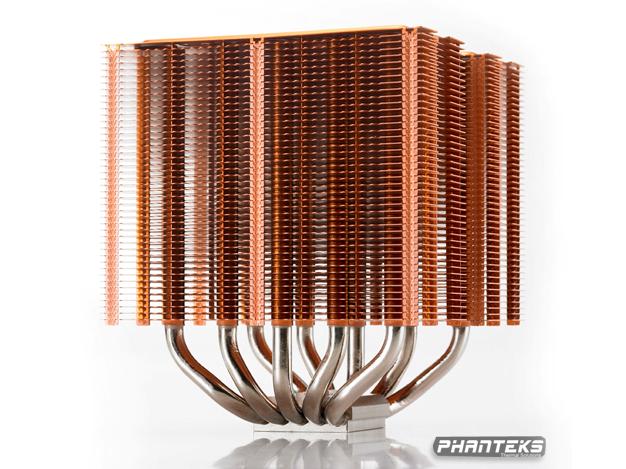

Phanteks PH-TC14PE - Orange

Phanteks PH-TC14PE er en ekstrem køler af de helt vilde! Dette monster af en køler har suveren ydelse og en støjsvag drift. Den understøtter den helt nye Socket 2011.

Phanteks er et nyt mærke på det danske marked, men lad dig ikke nare af dette. Virksomheden har nemlig mere end 20 års erfaring i OEM køler løsninger så du kan være helt sikker på at de ved hvad de laver.

Phanteks PH-TC14PE kommer i 4 fede farver så du kan matche den med lige det look du ønsker - super fed detalje der lige akkurat giver det sidste til dit casemod!


Producentens beskrivelse:
Phanteks PH-TC14_PE twin tower thermal radiator design uses the latest aerospace technology. By using P.A.T.S to increase cooling performance and C.P.S.C Technology to enhance thermal conductivity, heat will easily dissipate, creating an opportunity for greater overclocking. Combined with Dual Phanteks PH-F140 Premium 140mm Fans, easy-to-install SoliSku mounting kit and PH-NDC thermal compound, Phanteks PH-TC14 with unique colored is setting the new standard of today’s CPU cooling.

Specifikationer:
- Color: Orange
- Material: Copper ( Base and 5 x 8mm Heat-pipes), Nickel Plated.
Alum. ( cooling Fins / Top Cover) with Patented P.A.T.S (Physical Anti-Oxidant Thermal Shield) to increase cooling performance.
Patented C.P.S.C Technology (Cold Plasma Spraying Coating Technology) to enhance thermal conductivity.
- Fan Model: PH-F140 Premium Fan.
- Fan Size: 140x140x25 , Dual Fans includes.
- Fan Compatibility: 140x140x25mm x 3 pcs, (120 x 120 x25mm x 3 pcs). (Third fan clips and accessory included).
- Bearing Type_ UFB bearing (Updraft Floating Balance bearing)
- Blade Geometry: 9 colored Blades with MVB (Maelström Vortex Booster) Design
- RPM: 1200 RPM ± 10%
- RPM with Q.S.A: 900 RPM ± 10%
- Max Air Flow: 78.1 CFM
- Max Air Flow with QSA: 60.1 CFM
- Max Air Pressure: 1.21
- Max Air Pressure with QSA: 0.69 mm H2O
- Acoustical Noise: 19 dBA
-Acoustical Noise with Q.S.A: 15.2 dBA
- Input Power: 1.8W
- Current (Ampere): 0.15A
- Rate Voltage: 12V
- MTBF: MTBF > 150,000 hr.
- Heatsink Dimension (LxWxH) without fan: 134 x 140 x 160mm
- Heatsink Dimension (LxWxH) with Dual Fans: 159 x 140 x 171mm
- Heatsink Weight without fan: 970g
- Heatsink Weight with fan: 1100/1250g (single/Dual) Fan

Kompatibilitet:
Intel 2011, 1366, 1156, 1155, 1151, 1150
AMD: FM1, FM2, FM2+, AM3+, AM3, AM2+, AM2 (Kræver standard bagplade)

Blæsere: 2 stk. 140mm (2 stk. medfølger)

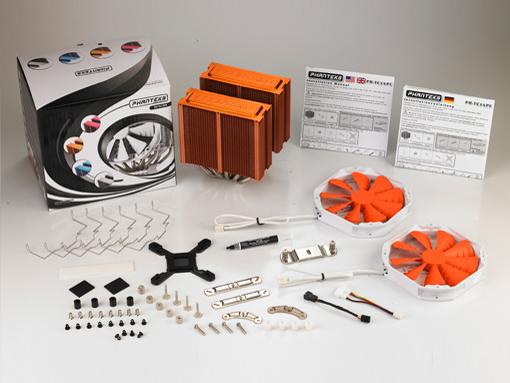

Produktet indeholder:
1x PH-TC14PE Heatsink
2x PH-F140 blæsere
1x Quiet- Speed- Adaptor. (Q.S.A.)
1x Y Fan Splitter
1x PH-NDC kølepasta
Div. støjdæmpende gummipakninger
PH-F140 blæser tilbehør/clips
Monteringsmateriale
Manual

Varenummer:
PN003
