Swiftech Apogee Drive II - LGA 1155/1156/1366

Swiftech Apogee Drive II er en genial kombineret kølehoved og pumpe løsning samlet i én enhed!

Apogee Drive II bygger på en kombination af det super højtydende Swiftech Apogee HD kølehoved og den suveræne Swiftech MCP35X pumpe. Det er ikke bare en smart samlet enhed, men konstellationen har vist sig at give hele 1.2ºC bedre ydelse end ved brug af Apogee HD kølehovedet - dvs. en forbedring på 1.2ºC på en i forvejen vanvittig ydelse!

Som en fed detalje kan farven på lyset i logo'et skiftes efter ønske mellem rød, blå og grøn!

Perfekt til builds hvor der er sparsomt med plads, eller hvis du bare vil gøre tingene en tand nemmere.

Denne version passer til Intel Socket 1150, 1155, 1156 og 1366.

Features:
- Best thermal performance: the Apogee™ Drive II manages to achieve better thermal performance than the award-winning Apogee™ HD.
- Best hydraulic performance: thanks to the integrated, PWM controlled MCP35X pump, which has established itself as the best-in-class pump on the market, the Apogee™ Drive II is the world's only waterblock that can be considered as a flow enhancing device, as opposed to a flow-robbing device.
- Best retention mechanism: proven time and again to satisfy beginners and hard-core enthusiasts alike for its ease of use, reliability, and repeatable results.
- Compact form factor enables liquid cooling in space constrained applications.
- Adjustable G1/4 inlet and outlet ports, compatible with all compression fittings.
- Illuminated logo in 3 colors: Red, Blue, or green.


Specifikationer:
Modelnavn (producentnummer): Apogee™ Drive II Version 1155/1366
Materiale Top: Black polyacetal copolymer (POM)
Materiale Bund: C110 kobber poleret og behandlet
Farve: Sort
Gevind: 2 stk. ¼" BSPP (G1/4)

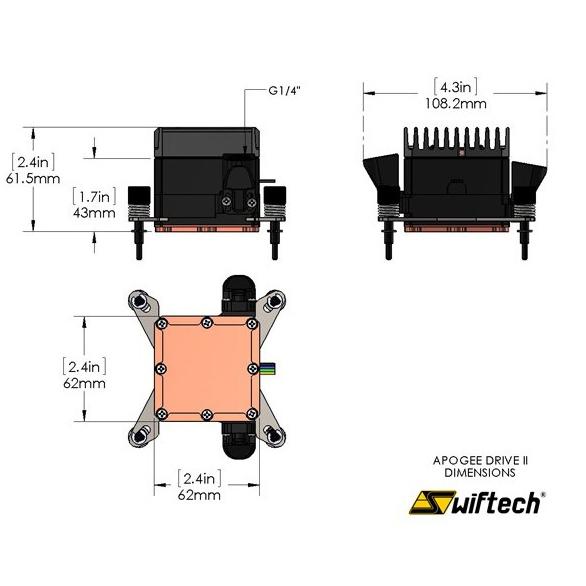

Dimensioner (HxBxD): Se billede
Netto vægt: 567 gram
Motor type: Electronically commutated, brushless DC, spherical motor
Nominal voltage: 12 V DC
Operating voltage range: 9 to 13.4 VDC
Max. nominal power (@12 V): 18 W
Max. nominal current (@12 V): 1.5 A
Max. nominal head (@12 V): 4.4m
Max nominal discharge (@12 V): ~ 4.75 GPM (17.5 LPM)
Maximum pressure: 22 PSI (1.5 BAR)
Temperature range: Up to 60 °C
Electrical power connector: Molex 4 pin
PWM + RPM Signals: 4-pin connector
Speed adjustment range: 1300 to 4500 rpm
Forventet levetid: 50,000 Hours

Kompatibilitet:
Intel Socket: 1150, 1155, 1156 og 1366.

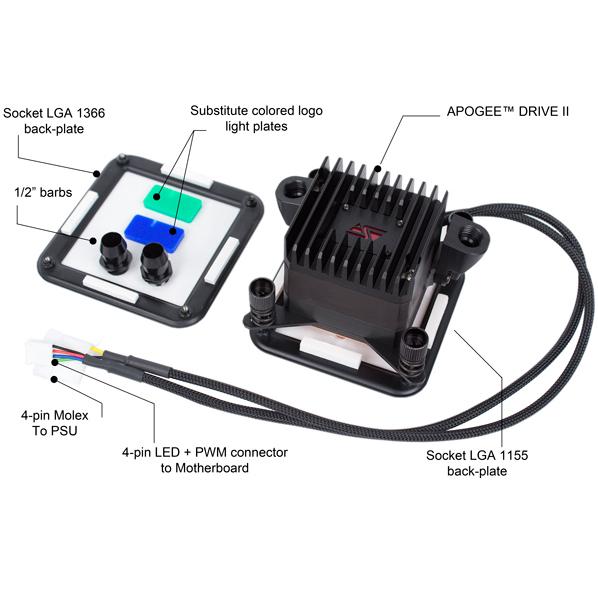

Produktet indeholder:
Apogee Drive II (Kølehoved/Pumpe enhed)
Socket 1155/1156 bagplade
Socket 1366 bagplade
3 forskellige farvede logo glas
1 sæt ½" (12mm) studser og spændebånd
Swiftech's TIM-Mate kølepasta
Monteringsvejledning

Varenummer:
04SW006
