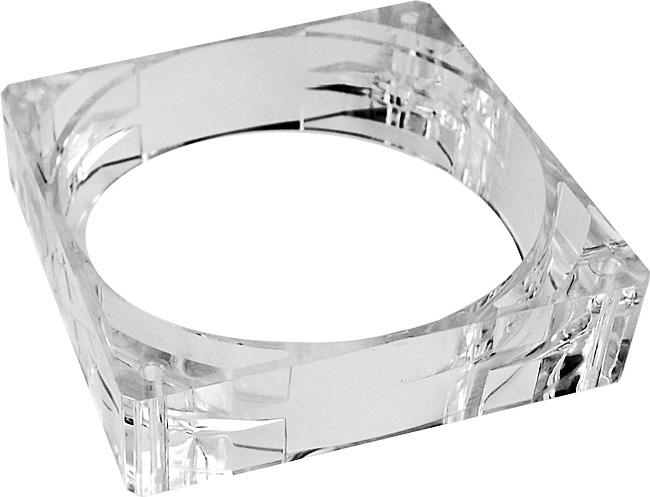

TFC Xtender Shroud LED Grøn

Smart fan shroud til alle 120mm radiatorer!

Shroud'en øger air flowet igennem radiatoren, da den minimerer den "døde" zone omkring blæserens motor! Det gør luften mere naturligt og effektivt kommer igennem din radiator, og giver optil 10-20 % bedre ydelse!


Bemærk TFC Xtender Shroud bliver leveret med M3 og M4 skruer, som passer til de fleste radiatorer! Hvis ikke din gør, såsom nyere XSPC, så må du selv lige en tur i byggemarkedet :)


Producentens beskrivelse:
First of all we designed the XTENDER to increase the air flow performance of a fan. The XTENDERs tunnel principle holds the air during its rotation inside and improves the air flow through a radiator. The air can not escape and is forced to use the way towards the radiator. Directly behind the middle of the impeller is no airflow, also called as the dead spot. But air turbulence is needed to pick up the heat from the heat source. By using the XTENDER SHROUD the air turbulence is increased within this tunnel volume and avoids the dead spot. Thus you gain more cooling performance for your radiator or cooling device.


Features:
* It can be used with any Radiator available on the market with standard 120mm dimensions.

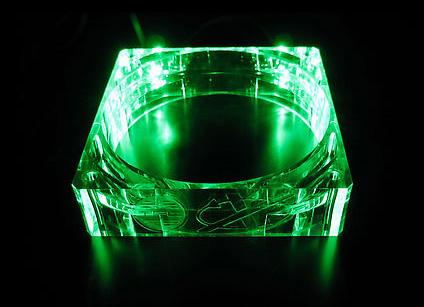

* It has 2 LED mounts for use with supplied LED Module.
* LED Mounts are designed for standard LEDs. Customization with other 5mm LED's is possible.
* It consists of pure PMMA Acrylic Material.
* By mounting this item on a radiator, it will increase the cooling performance up to 20%
* Reduce noise by lowering fan speed
* Dimensions: 120 x 120 x 31 mm
* Weight: 106g


The Xtender tunnel reduces fan dead space and improves the airflow through a radiator. The air turbulence is increased within this tunnel volume and eliminates the dead spot below the middle of the impeller.

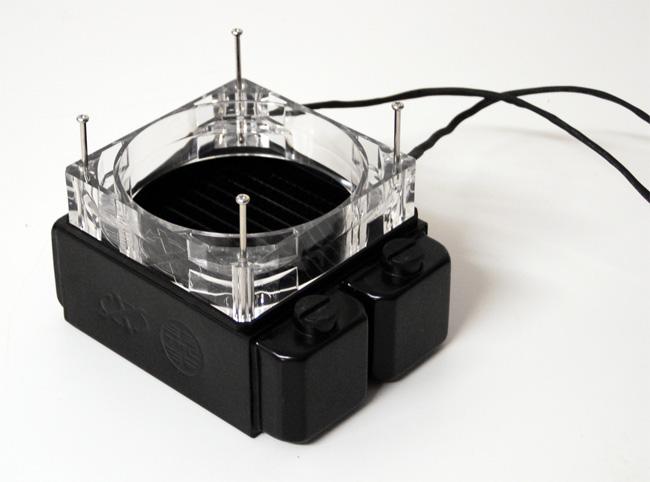

IMPORTANT NOTES & INSTALLATION GUIDE!
1. Improve performance in both a Push or Pull setup. A slight performance gain is in the Pull setup.
2. It is always better for the cooling performance, to push/pull ambient temperature into the case and through the radiator.
3. The supplied screws are 4x M3/65mm and 4x M4/65mm and selected for use with 120x120x25mm fans. M3 screws are used for our Xchanger Series. M4 should work with other rads. Screws are not supplied for fans with 38mm height. **Note** M4 screws are a tight fit and some force is needed to install.
4. Use the supplied silicon pad/noise absorber between Xtender and fan. Currently designed with the 17mm fan hole spacing but can be trimmed for 15mm radiator fan spacing.

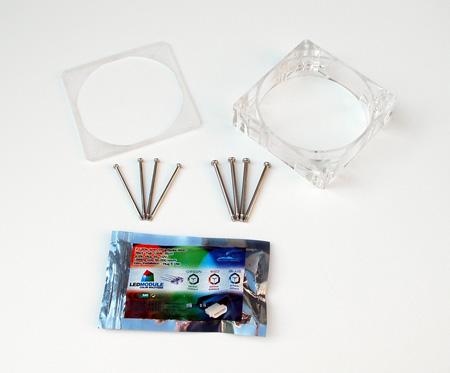

Produktet indeholder:
1x XTENDER
1x XVIBE 120
1x LED MODULE
8x M3 PVC Washers
8x M4 PVC Washers
4x M3/65mm Panhead Screws
4x M4/65mm Panhead Screws

Varenummer:
08TF002
