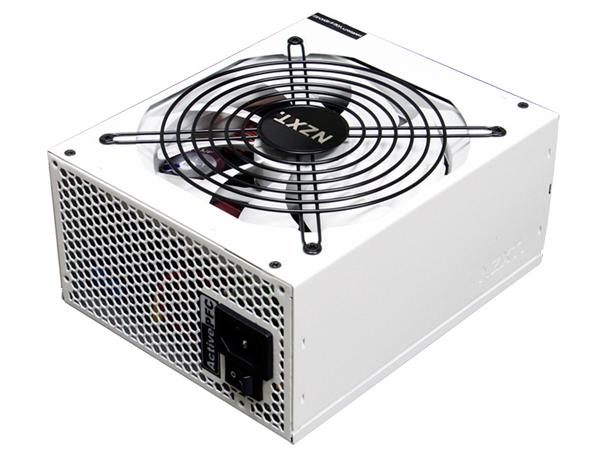

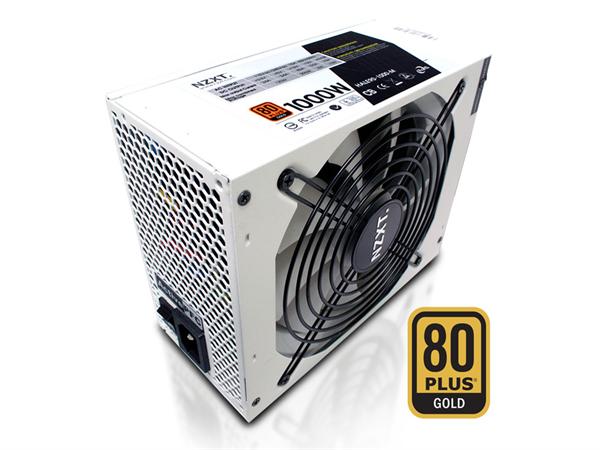

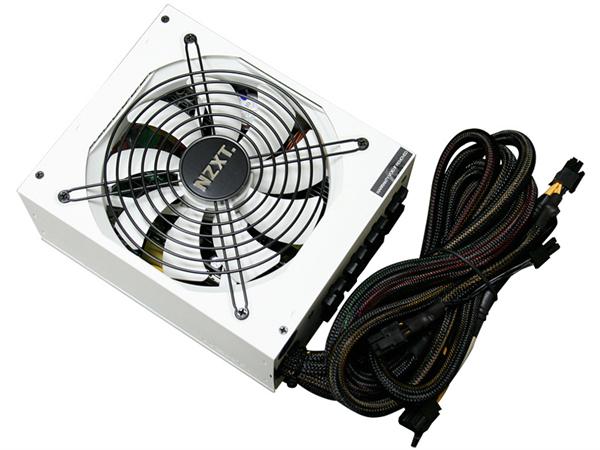

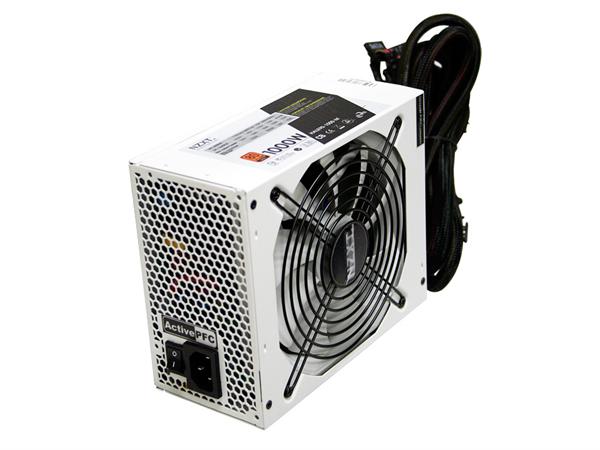

NZXT HALE 90 PSU - 80+Gold - 1000W

NZXT HALE 90 strømforsyningerne er endnu serie af super lækre gamerprodukter i højeste kvalitet fra NZXT!

HALE 90 er 80+ Gold certificeret og har ultra høj effektivitet! Ved 20%, 50% og 100% belastning er effektiviteten henholdsvis hele 87%, 90% og 87%!
Du får leveret alt denne kraft via en enkelt 12V linje, så du får klippestabil strøm og intet går til spilde! NZXT HALE 90 er også lavet med 100 % Japanske kapacitorer, så du får bedste kvalitet, længere levetid og NZXT giver dig hele 5 års garanti!

NZXT HALE 90 bliver kølet af en intelligent temperaturstyret low-noise 140mm blæser, som maksimalt udvikler 20db for modellerne fra 550-750W og 30db for 850W og større!

HALE 90 er understøtter selvfølgelig alle de nyeste standarder for bundkort og grafikkort tilslutninger, så den er bare at sætte i computeren og nyde dens fede udseende, enorme kraft og nærmeste ikke-eksiterende støjniveau!


Producentens beskrivelse:
NZXT introduces the 80+ gold certified HALE90 series built from the ground up specifically customized for gamers and enthusiasts and offers incredibly efficient operation that will meet the needs of even the most power hungry enthusiasts.


Features:
• 80+ Gold certified: The HALE 90 series from NZXT operates at ultra high efficiency, at 20%, 50% and 100% loads, efficiencies are 87%, 90%, and 87% respectively.

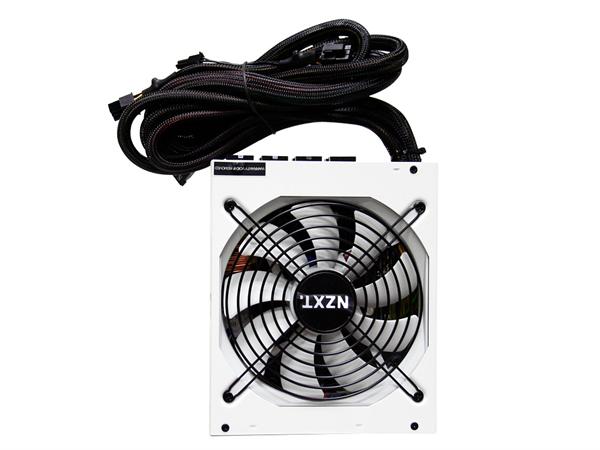

• Single140mm two ball-bearing fan operates with minimal noise even at full load. Maximum decibel levels are 20db for wattages between 550-750W and 30db for 850W and above.
• Strong Single Rail Design: A single +12V rail provides stability and ease of use making the most out of your power supply. Offers stable & clean current delivery under heavy load.
• Hybrid LLC resonant Topology circuitry allows the HALE series to create highly efficient power supplies ranging from 550W-> 1000W.
• Full range Design from 100V – 250V with Active PFC.
• 100% Japanese Capacitors: High quality components for longer life time and better reliability.
• Latest CPU support for all the latest INTEL and AMD CPUs like Corei7, i5, AMD Phenom II X4, X3.
• Latest GPU support, ideal for latest DX11 GPUs and comes with 8pin and 8(6+2) pin PCI-E connectors.
• Large tower support: The Hale Series of power supplies have extended 8pin CPU connectors for wire management in large cases which have PSUs mounted at the bottom.
• Compliance with ATX 12V v2.2, EPS 12V v2.91, and SSI EPS 12V v2.92 Specifications.
• Environmentally Responsible: Consuming less than 1W during shut off status Complies with the newest EuP ( Energy-using Products) requirements and USA Energy star standards.
• Continuous Power: The HALE 90 series listed wattage is the continuous operating wattage.
• Keeping it safe: The HALE series offers over voltage, current, power, under voltage, and short circuit protection. The power supply will automatically shutdown to prevent any damage to your system or misuse.
• Warranty: 5 Years


DC Output:
+3,3V: 24A
+5V: 22A
+12V: 83A
-12V: 0,5A
+5Vsb: 3,5A
Total: 1000W

Connectors:
1 x ATX / BTX motherboard power connector (20+4Pin)
2 x EPS +12V Power Connector (4+4 Pin)
9 x Peripheral connector (4 Pin)
10 x Serial-ATA power connector
1 x Floppy disc connector (4 Pin)
3 x PCI-Express 6pin power connector
3 x PCI-Express 6+2 pin power connector

Varenummer:
NZ034
